Usage:

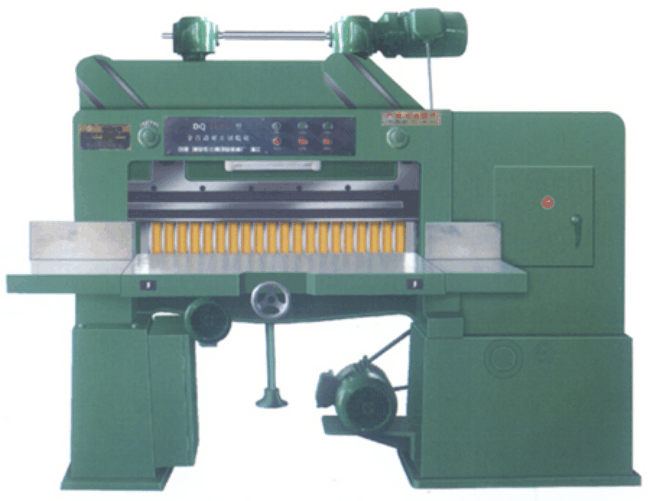

BY Serial Paper Cutter is comparatively effective in cut-ting and suitable for cutting various kinds of paper.Cardboard,wood-based plywood,rubber,plastics and similar materials.It is an indispensible cutting machine for printing houses,carton and cardboard box works and manufacturers making product of rubber,plas-tics and synthetic leather. |
MAIN TECHNICAL VARIABIES：
| Model |
QZ-103 |
DQ-1300A |
DQ-1300 |
DQ-201A |
DQ-1150 |
DQ-201-II/III |
DQ-201-II |
| Max.Cutting width |
1300mm |
1300mm |
1300mm |
940mm |
1150mm |
940mm |
940mm |
| Max.cutting length |
1300mm |
1300mm |
1300mm |
1000mm |
1150mm |
1000mm |
1000mm |
| Max.Pile height |
130mm |
120mm |
120mm |
120mm |
130mm |
120mm |
120mm |
| Pile speed |
30timen
/min |
23timen
/min |
23timen
/min |
23timen
/min |
23timen
/min |
23timen
/min |
23timen
/min |
| Worktable high |
820mm |
820mm |
820mm |
820mm |
820mm |
820mm |
820mm |
| Cutting Motor |
4kw
1420rpm |
4kw
1420rpm |
4kw
1420rpm |
1.5kw
1420rpm |
3kw
1420rpm |
2.2kw
1420rpm |
1.5kw
1420rpm |
| Feeding Motor |
/ |
0.55kw |
0.55kw |
0.37kw |
0.37kw |
1.37kw
|
/ |
| Pressing Motor |
/ |
0.55kw |
0.55kw |
0.37kw |
0.37kw |
0.37kw |
0.37kw |
| Overall dimensions |
2528x2715
x1600mm |
2500x1000
x1850mm |
2500x1000
x1850mm |
2200x900
x1750mm |
2200x900
x1750mm |
2200x900
x1750mm |
2200x900
x1750mm |
| Weight |
3500kg |
2500kg |
1800kg |
1700kg |
1100kg |
1100kg |
1100kg |
